SKU: EcoPID.4.6.2R.S.0

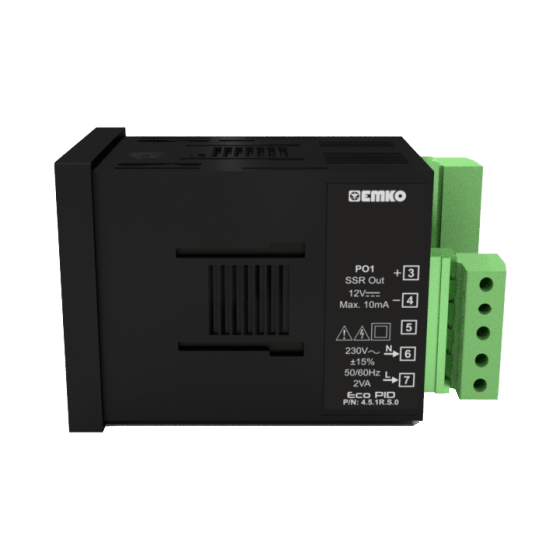

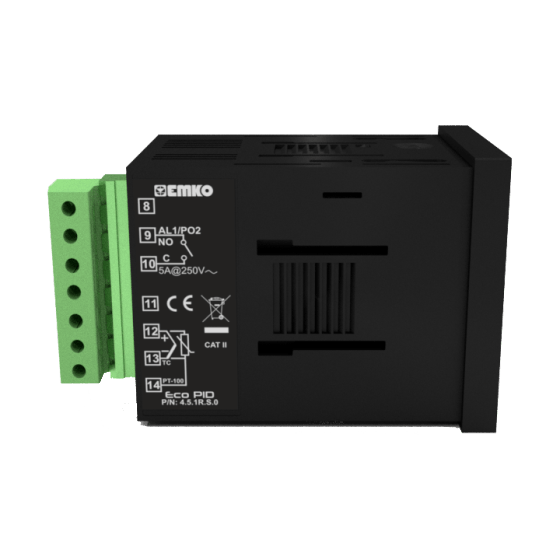

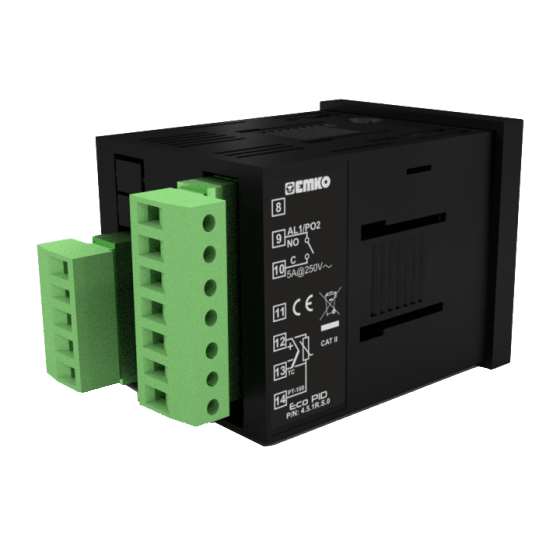

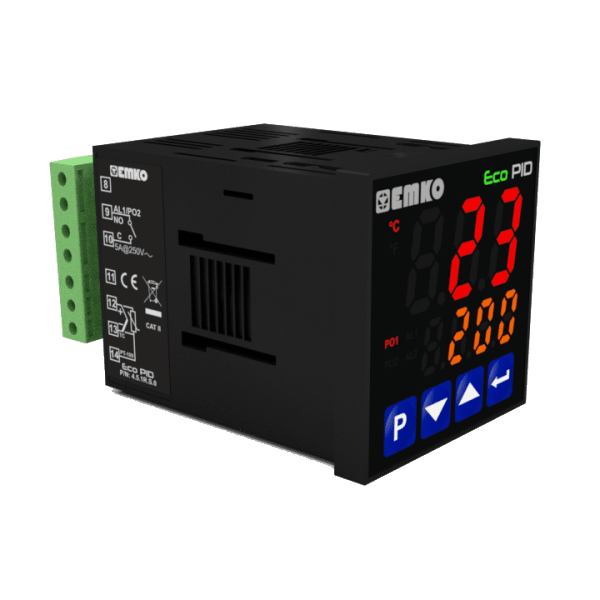

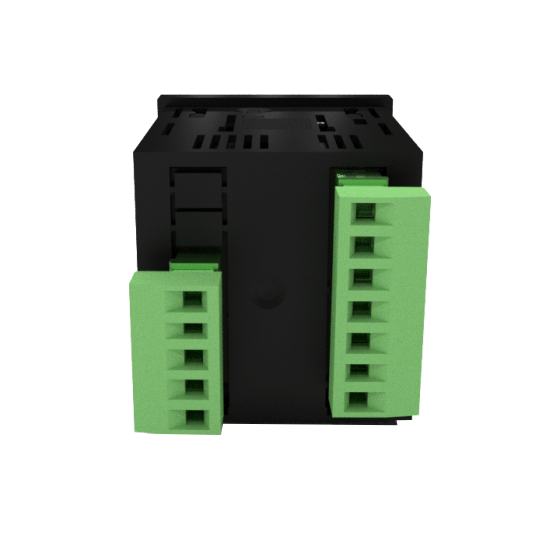

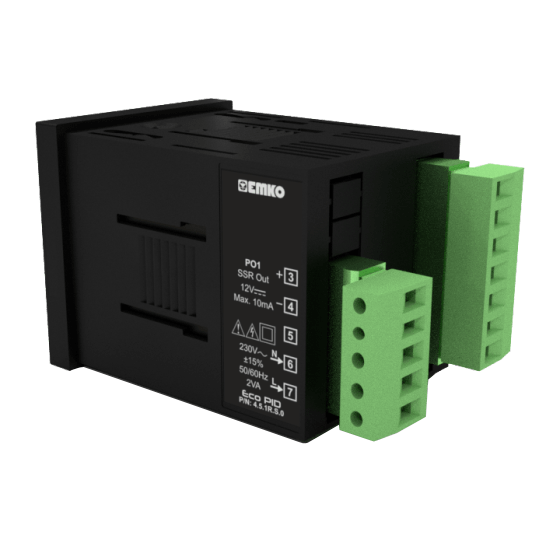

The EcoPID is a 1/16 DIN (48 x 48mm) 3 Digit PID temperature controller with Thermocouple and RTD inputs plus relay/SSR drive control outputs.
The easy to operate panel mounted digital temperature controller can be used in a wide range of applications and available with a low voltage 24Vdc or 100-240Vac power supply. Outputs could be used either for alarm, signal or control purposes.
Physical Features: |
|
| Dimensions | 48 mm x 48 mm x 86.5 mm |
| Protection Class | IP65 at front, IP20 at rear |
| Installation | Fixed Installation |
| Storage / Operating Temperature | 0°C to 50°C |
| Storage / Operating Humidity | 90 % max. (None condensing) |
Electrical Features: |
|
| Supply Voltage and Power | 10 to 30Vdc (Standard) 100 to 240Vac 50/60Hz (Option) 115Vac (±%15) 50/60Hz (Option) 230Vac (±%15) 50/60Hz (Option) 24Vac/dc (±%15) 50/60Hz (Option) 24Vac (±%15) 50/60Hz (Option) |
| Sensor Inputs | Thermocouple (TC) J, K, R, S, T (IEC584.1)(ITS90) Thermoresistance (RTD) PT-100 (IEC751)(ITS90) |
| Optional Sensor Inputs | |
| Scale | Fe CuNi -200°C to 900°C NiCr Ni -200°C to 1300°C Pt13%Rh 0°C to 1700°C Pt10%Rh 0°C to 1700°C Cu CuNi -200°C to 400°C PT 100 -200°C to 650°C PT 100 -199.9°C to 650.0°C |
| Accuracy | Thermocouple (TC):( ± 0.25% of full scale or ± 3ºC, whichever one is greater) ±1 digit max. Thermoresistance (RTD):( ± 0.25% of full scale or ± 2ºC, whichever one is greater) ±1 digit |
