SKU: CD66EcoLite.4.6.2R.0.0

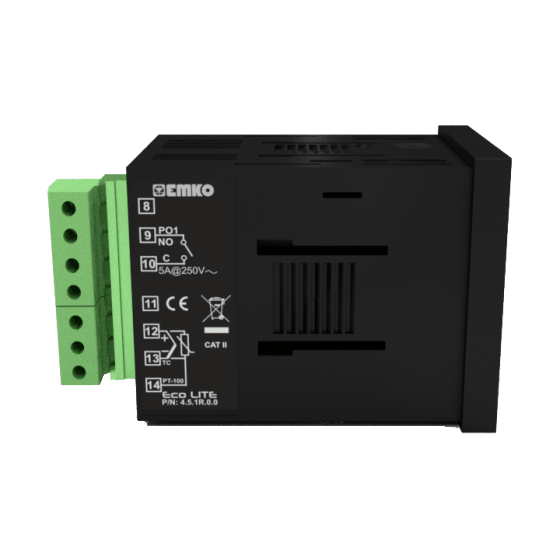

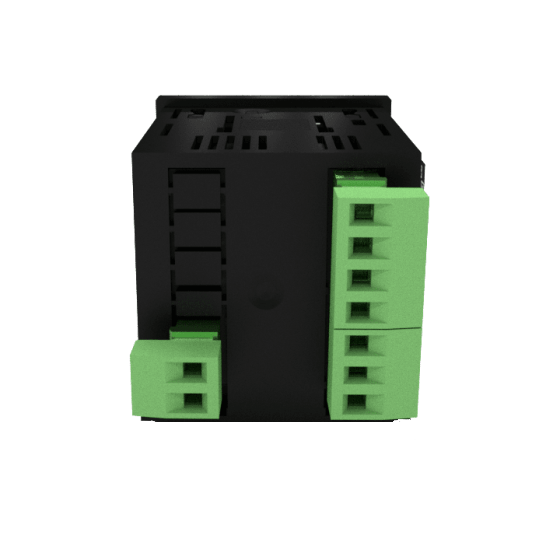

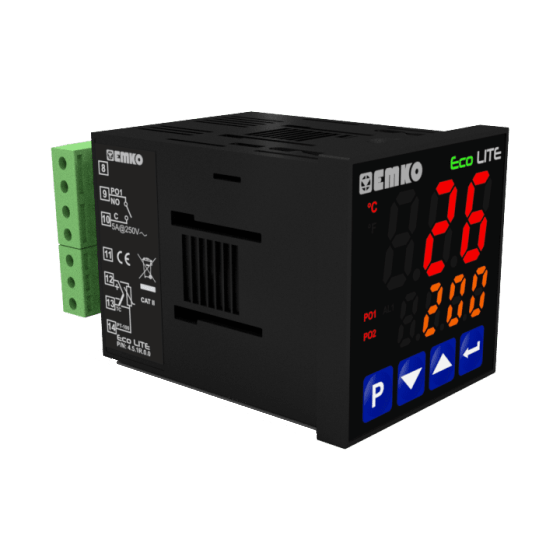

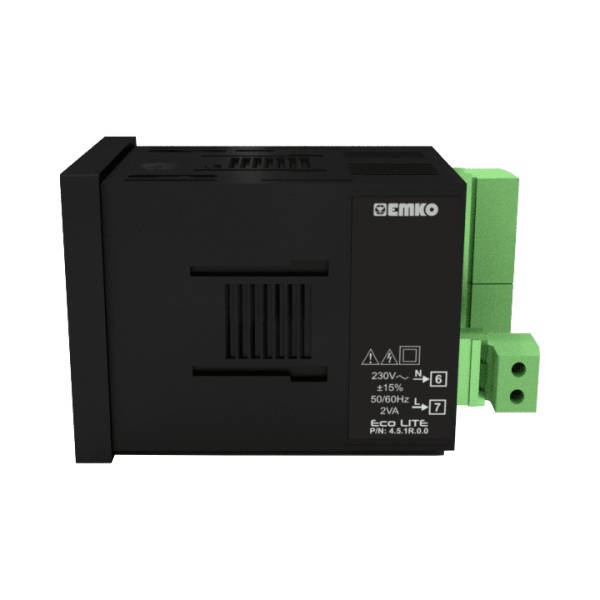

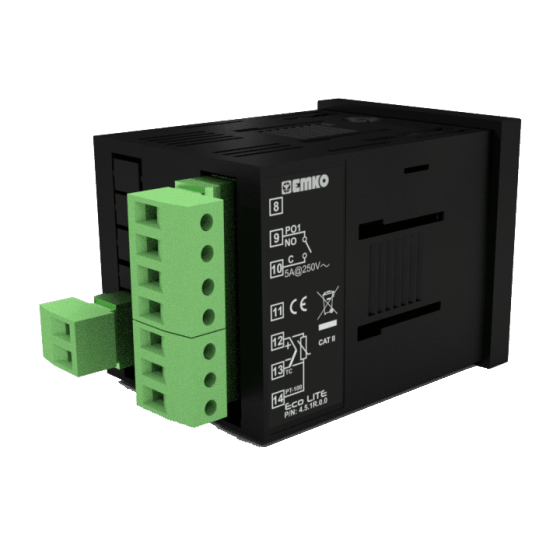

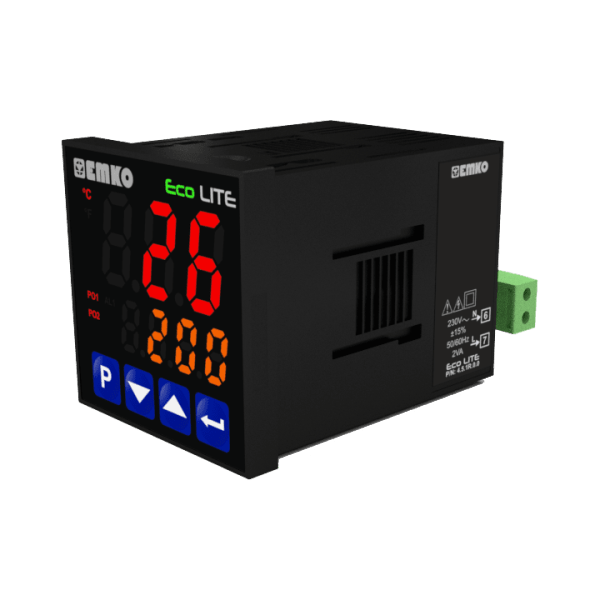

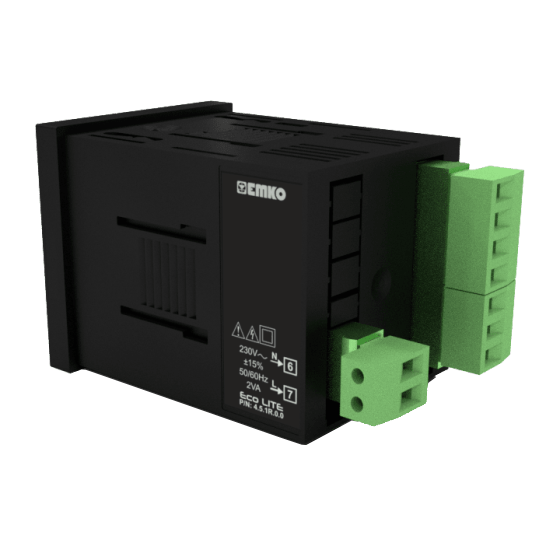

The EcoLite is a 1/16 DIN (48 x 48mm) 3 Digit ON/OFF temperature controller with Thermocouple and RTD inputs plus two relay control outputs.
The easy to operate panel mounted digital temperature controller can be used in a wide range of applications and available with a low voltage 24Vdc or 100-240Vac power supply. Outputs could be used either for alarm or control purposes.
Physical Features: |
|
| Dimensions | 48 mm x 48 mm x 86.5 mm |
| Protection Class | IP65 at front, IP20 at rear |
| Installation | Fixed Installation |
| Storage / Operating Temperature | 0°C to 50°C |
| Storage / Operating Humidity | 90 % max. (None condensing) |
Electrical Features: |
|
| Supply Voltage and Power | 10-30Vdc (Standard) 100-240Vac 50/60Hz (Option) 115Vac (±15%) 50/60Hz (Option) 230Vac (±15%) 50/60Hz (Option) 24Vac/dc (±15%) 50/60Hz (Option) 24Vac (±15%) 50/60Hz (Option) |
| Sensor Inputs | TC, RTD Thermocouple (TC): J, K, R, S, T and L(IEC584.1)(ITS90) thermoresistance (RTD): Cu-50 and PT-100 (IEC751)(ITS90) |
| Optional Sensor Inputs | |
| Scale | Fe CuNi -199°C to 900°C / -19.9°C to 99.9°C Ni CrNi -199°C to 999°C / -19.9°C to 99.9°C PT13%RhPt 0°C to 999°C / 0.0°C to 99.9°C PT10%RhPt 0°C to 999°C / 0.0°C to 99.9°C Cu,CuNi -199°C to 400°C / -19.9°C to 99.9°C Ni CrNo -150°C to 800°C / -19.9°C to 99.9°C Cu50 -199°C to 200°C / -19.9°C to 99.9°C PT100 -199°C to 650°C / -19.9°C to 99.9°C |
| Accuracy | Scale ± %0.25 |
Output |
|
| Relay Output | Relay 1 (5A@250V ac at Resistive Load) Relay 2 (5A@250V ac at Resistive Load) |
| SSR Output | Not Available |
| Analogue Output | Not Available |
| Optional Outputs | Not Available |
Control |
|
| Control Form | On/Off |
| Reading Frequency | 0.1 second |
| Communication Protocols | |
| Approvals | CE |
