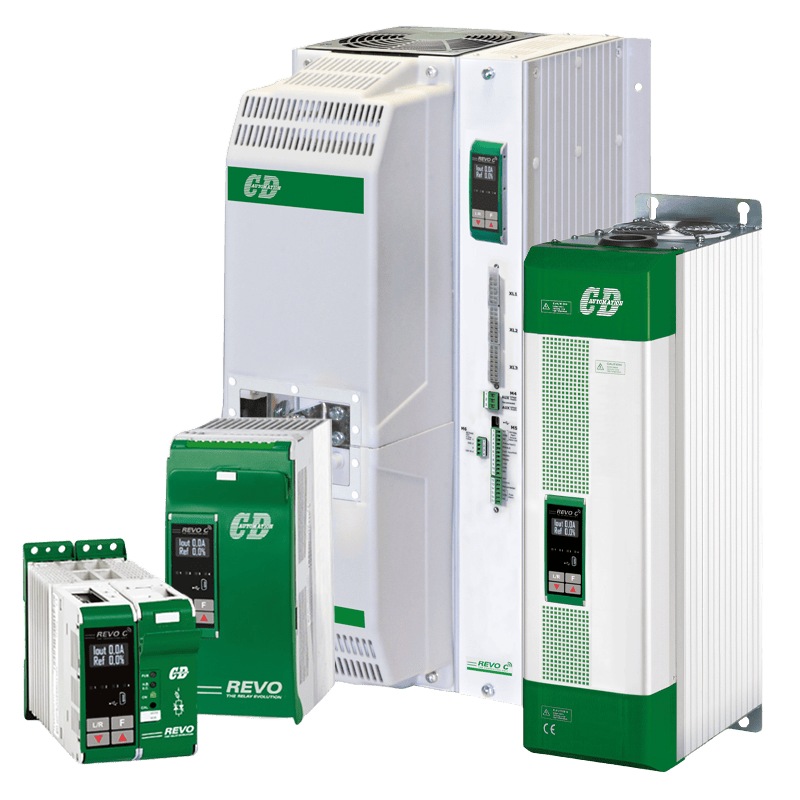

Power Controller – REVO C

Designed to connect seamlessly with the outside world, our intelligent family of REVO-C thyristor power controllers delivers real-life cost saving benefits.

  • Reduce machine downtime and extend heater life
  • Phone app allows remote integration of your thermal process
  • Tools to help identify and reduce energy consumption
  • Connect to system software via Mobdus, Profibus and Profinet
  • Ideal for all load types
Availability: In stock SKU: REVO-C GET A QUICK QUOTE

Description

Overview

REVO-C’s stunning new functionality means that you will never be alone and under pressure again. Easily upload critical data, within minutes and feel the protection of our remote support from anywhere in the world, all via our FREE smartphone APP.

Available in single phase or 3 phase control formats with current sizes up to 2100A and voltages up to 690Vac, REVO-C thyristor power controller covers every possibility and suitable for all application types.

Benefits

  • Helps eliminate machine downtime by up to 95% and can reduce overall purchase cost by 90% over the product lifetime compared to traditional mechanical contactors
  • An intuitive application wizard that automatically recommends configuration settings based on load type
  • Connect seamlessly with your management software with the most popular Fieldbus systems
  • View and monitor critical data even with the cabinet door shut via a free smartphone app
  • Software tools to capitalise on valuable energy saving data with historic datalogging and our energy totaliser calculating your energy cost
  • UL 508 certified helps reduce agency testing costs and shortens your project schedule

Features

  • Designed for all load types including normal & variable resistance, medium, long and short wave infrared, transformer & inductive
  • Available in single (phase to phase or phase to neutral) or 3 phase versions (2 phase also available for 3PH, 3 wire configurations with no neutral connection)
  • Firing modes include Zero Cross, Burst, Half Cycle, Single Cycle, Delayed Triggering, Phase Angle with or without Soft Start
  • DC Logic (SSR drive), 0-20mA, 4-20mA or 0-10V input control signals
  • Available in 20 amp sizes up to 2100A and 3 voltage sizes, up to 480V, 600V and 690Vac
  • Plug and play PC configuration software
  • Real character organic LED display intuitively provides setup and process data

Resources

Product datasheets and manuals can be found under the Documents & Manuals tab above.

Suitable for Load Types

  • Normal Resistance
  • Short, Medium and Long Wave Infrared Lamps
  • Inductive (Transformer Primary)
  • Cold resistance and SiC element load types (single phase only)
Product Name Thyristor Power Controller - REVO-C
Ideal For Designed for all load types including normal & variable resistance, medium, long
and short wave infrared, transformer & inductive
Load Type Single Phase (phase to phase or phase to neutral), 3 Phase (3 or 4 wire)
Controlled Phases 1, 2 or 3
Current Size 30A, 35A, 40A, 60A, 90A, 120A, 150A, 180A, 210A, 300A, 400A, 500A, 600A, 700A,
800A, 1100A, 1400A, 1600A, 1800A, 2100A
Voltage Power Supply From 24V to 480Vac (Standard) or 600V & 690V as option on specific models
Firing Range Zero Cross (ZC), Half Cycle (HC), Single Cycle (SC), Burst Firing (BF), Delayed
Triggering (DT), Phase Angle (PA), Soft Start (SS)
Input Signal DC logic (SSR drive), 0-20mA, 4-20mA, 0-10Vdc, 10K Pot
Communication Modbus RTU as standard, Profibus DP and Profinet as option
Feedback Type Voltage (V), Current (I) and Power (VxI), or Voltage Square (V2) and Current
Square (I2) with additional transfer to VxI
Options Current Limit, Heater Break Alarm, WiFi, Datalogging, Energy Totalizer
Configuration Software Yes
Approvals cUL and CE + EMC approved
Altitude Over 1000m of altitude reduce the nominal current of 2% for each 100m
Auxiliary Voltage Supply 12 to 24Vac/dc
90 to 130Vac 8VA Max
170 to 265Vac 8VA Max (Standard for 1PH)
230 to 345Vac 8VA Max
300 to 530Vac 8VA Max (Standard for 3PH)
510 to 690Vac 8VA Max
Heater Break Alarm To diagnose partial or total load failure with automatic setup, relay alarm output
and LED indication, available as an option
Voltage Frequency Automatically from 47 to 70 Hz
Humidity From 5 to 95% but without condensation or surface ice
Mounting DIN-rail up to 60A, Screw mounting
Panel Sealing IP20
Storage Temperature -25 °C to 50 °C Max
