Temperature Controller – DT320 1/16 DIN

The Delta DT3 series temperature controller is designed with exceptional product functionality & performance, ease of use, long term reliability and is UL approved.

With Self-Tuning and FUZZY temperature control functions, reaching setpoint fast with minimal overshoot is achieved with the minimum of user intervention.

Useful features include changing display colour (i.e. green to red) if an alarm becomes active. In addition, the innovative design enables customers to replace output modules with ease to suit changes process requirements. Examples include the addition of an extra alarm relay or adding a second output relay for cooling.

• Power supply: AC 100 to 240V, 50/60Hz, DC 24V ±10%
• Input sensors: Thermocouple (B, E, J, K, L, N,R, S, T, U, TXK), Platinum RTD (Pt100, JPt100)
• Analog input: 0 to 5 V, 0 to 10 V, 0 to 20 mA, 4 to 20 mA, 0 to 50 mV
• Display accuracy: 0 or 1 digit to the right of the decimal point
• Sampling rate: Analog input: 0.1s, Thermocouple
• Display method: LCD. Present Value: red, Set Value: green
• Approvals: CE, UL Certified
• Control modes: PID, PID programmable, FUZZY, Self-tuning, manual, ON/OFF
• Ambient temperature: 0 ~ +50℃
• Ambient humidity: 35 to 80% RH (non-condensing)

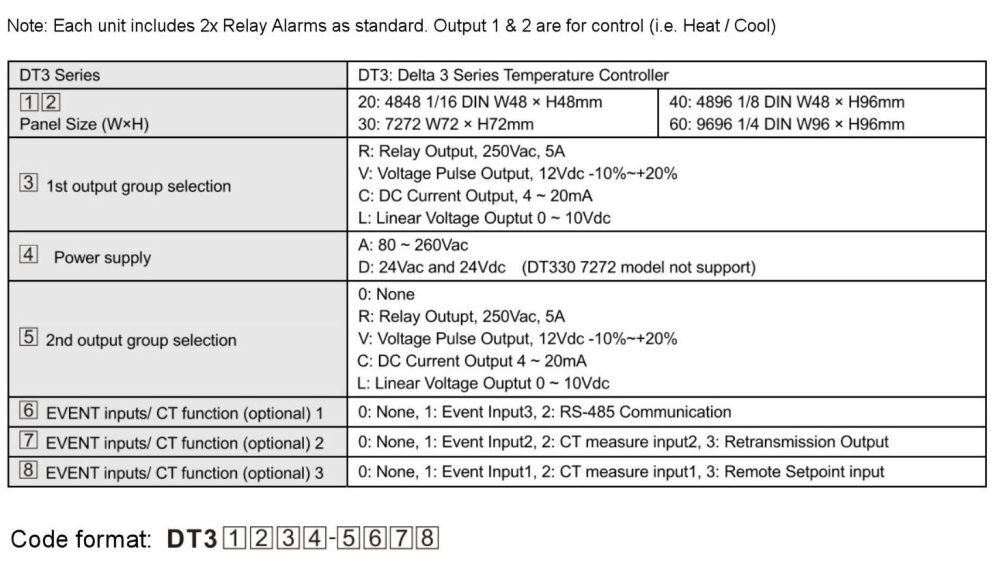

Ordering Code:
