Solid State Relay – REVO Sx Multi-zone

Multiple solid state relays in one compact module design, REVO-Sx is perfect for low and medium power applications where space is at a premium.

  • Available from 3.5 Amps to 90 Amps
  • Maximises cabinet space with space saving design
  • Clean electricity as no interference is produced
  • Ideal for switching normal resistance heating elements
Availability: In stock SKU: REVO-Sx GET A QUICK QUOTE

Description

Overview

When space is limited, and you need a compact yet efficient multi-loop solid state relay, the REVO-Sx from CD Automation is your go-to solution. This advanced relay system is designed to meet the demands of various low power applications, providing exceptional performance in a remarkably small footprint.

The REVO-Sx series stands out for its ability to house up to four independent control loops within a single module. Each loop is equipped with essential components, including:

  • Quick-Blow Fuse & Holder: Ensures rapid protection against overcurrent, safeguarding your equipment and enhancing system reliability.
  • Thyristor: Integral to the relay’s switching capability, enabling efficient control of power to the load.
  • Heat Optimized Heatsink: Designed to dissipate heat effectively, ensuring stable operation even under continuous load.
  • Firing Circuit: Each loop has its own dedicated firing circuit, ensuring precise control and consistent performance.
  • LED Indicators: Provides clear visual feedback of On/Off status and alerts you immediately in the event of a fuse failure.

Package Sizes

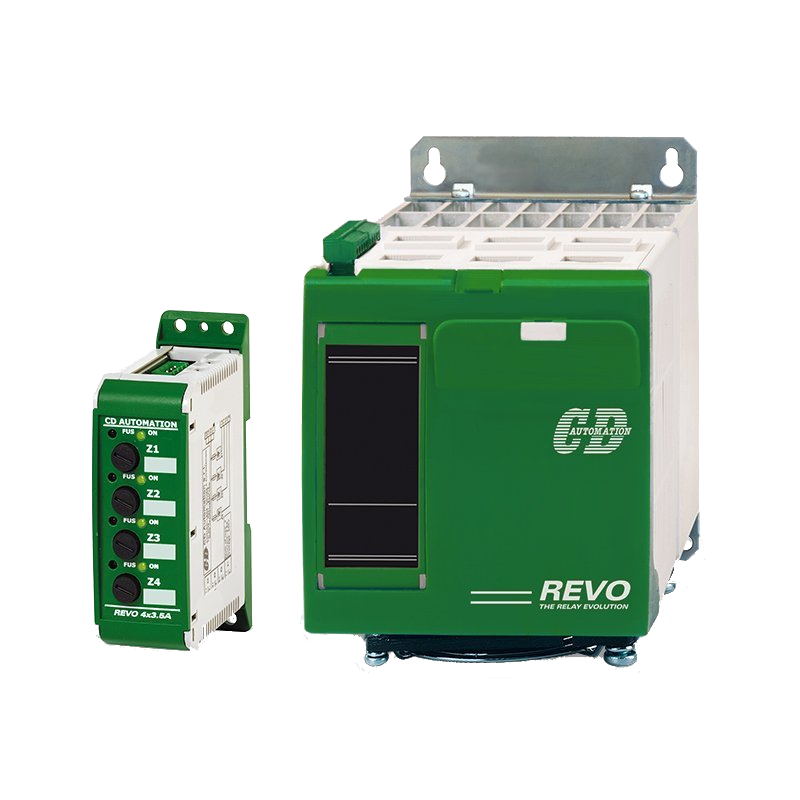

The REVO-Sx modules are available in various configurations to match your specific needs. The smallest module, measuring just 121mm x 36mm, is available with:

  • 4 loops of 3.5A, 3 loops of 4.5A, or 2 loops of 7A

For applications requiring higher power, a larger module is also available, capable of handling:

  • 3 loops of 50A, 3 loops of 60A, 3 loops of 70A, or 3 loops of 90A

These configurations make the REVO-Sx ideal for low power applications such as thermoforming, blow molding, and hot runners, where precise temperature control and reliable performance are crucial.

Whether you’re involved in manufacturing processes that demand tight control or simply need a compact, multi-zone solid state relay, the REVO-Sx offers the flexibility, reliability, and space-saving design you require.

For more information or to discuss your specific application needs, contact your nearest CD Automation support office. Their team of experts is ready to help you find the perfect solution for your control systems.

Resources

Suitable for Load Types

  • Normal Resistance heating elements
  • Single Phase (phase to phase, or phase to neutral)
Product Name Solid State Relay - REVO-Sx
Ideal For Normal Resistance load types
Load Type Single Phase (phase to phase or phase to neutral)
Controlled Phases 1
Current Size 4x 3.5A, 3x 4.5A, 2x 7A, 3x 50A, 3x 60A, 3x 75A, 3x 90A
Voltage Power Supply 230V or 480Vac (3.5, 4.5, & 7A), 480V or 600Vac (50 to 90A)
Firing Range Zero Cross (ZC)
Input Signal DC logic (SSR drive)
Communication None
Feedback Type Open loop
Options None
Configuration Software None
Approvals CE + EMC approved
Altitude Over 1000m of altitude reduce the nominal current of 2% for each 100m.
Auxiliary Voltage Supply 24Vdc required with 480Vac Supply version only (3.5, 4.5, & 7A)
Voltage Frequency Automatically from 47 to 70 Hz
Humidity From 5 to 95% but without condensation or surface ice
Mounting DIN-rail up to 7A, Screw mounting
Panel Sealing IP20
Storage Temperature -25 °C to 50 °C Max
